Professional optical leveling instrument designed for precise elevation measurement

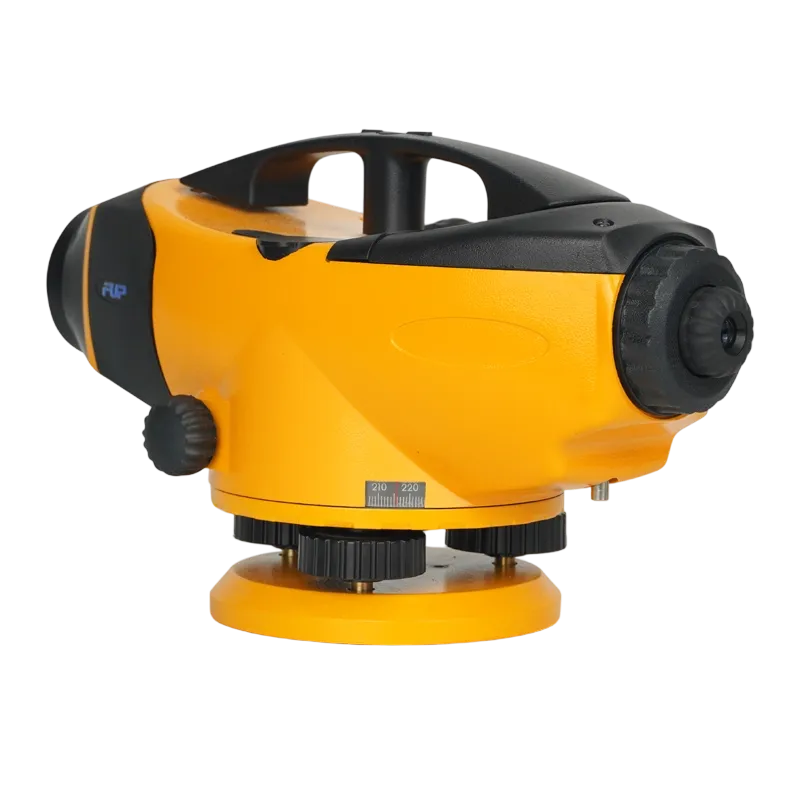

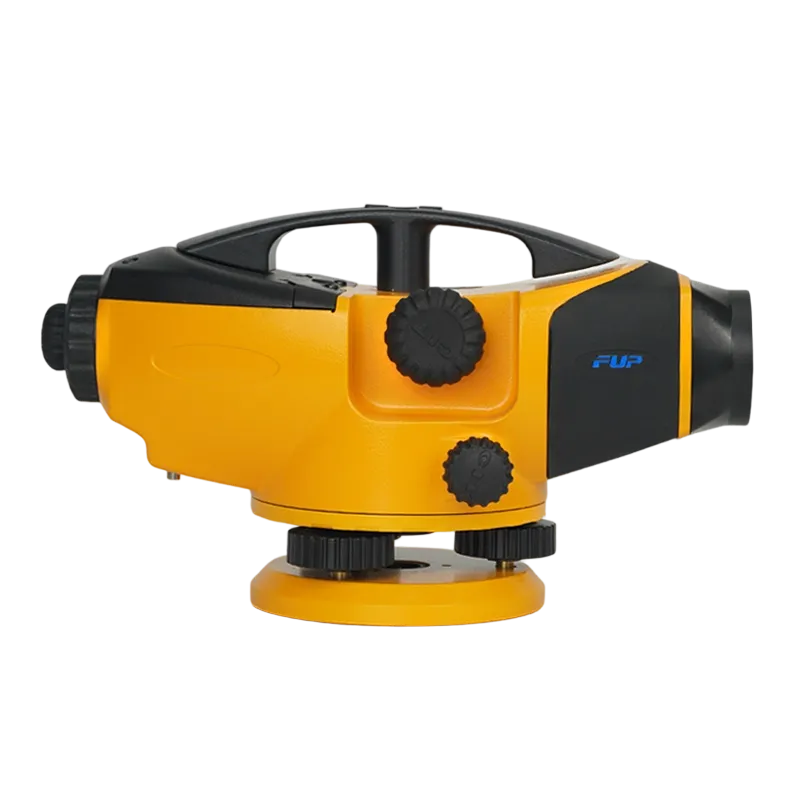

The E32 Automatic Level is a rugged, high-precision optical leveling instrument engineered for construction surveying, infrastructure development, deformation monitoring, mining operations, and engineering alignment. Featuring a reliable automatic compensator and powerful 32× magnification optics, it delivers accurate elevation measurements with minimal setup time.
- 32× High-Magnification Optical System
- Automatic Magnetic-Damped Compensator
- Suitable for Second- and Third-Order Leveling
- Operating Temperature: -30°C to +50°C
- Distance Measurement via Stadia Method
- Rugged Metal Housing Construction
- Water and Dust Resistant Design
- Fast Instrument Setup
- Long-Range Staff Observation
- Ideal for Construction, Mining & Infrastructure Projects
Automatic Compensation for Faster and More Reliable Measurements
The E32 features a precision magnetic-damped compensator that automatically maintains a horizontal line of sight after rough leveling. This significantly reduces setup time while eliminating common errors associated with manual leveling adjustments.
32× High-Resolution Optics for Extended Observation Range

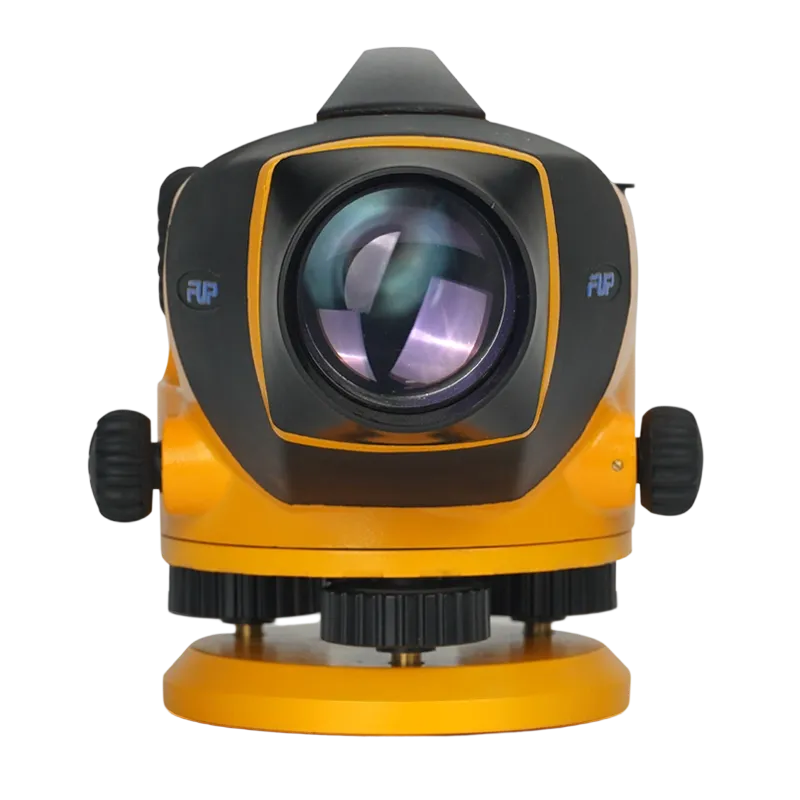

Equipped with powerful 32× magnification and a high-quality objective lens, the E32 provides bright, clear images for accurate staff readings at long distances.
Built for Harsh Outdoor Environments
The E32 is designed to operate reliably in temperatures ranging from -30°C to +50°C. Its sealed construction helps protect critical components from dust, moisture, and changing weather conditions.
Rugged Metal Construction for Long-Term Durability
Constructed with a robust metal body and protective exterior components, the E32 is built to withstand transportation shocks, vibration, and demanding job-site conditions.
| Telescope magnification | 32x |
| Effective aperture | 40 mm |
| Field of view | 1°20′ |
| Shortest focusing distance | 0.5 m |
| Standard deviation per km double run (height) | 1.0 mm |
| Compensator type | Magnetic-damped automatic |
| Compensator working range | ±15′ |
| Compensator setting accuracy | ±0.3″ |
| Horizontal accuracy | 0.5″ |
| Circular bubble sensitivity | 8′ / 2 mm |
| Stadia ratio | 1:100 |
| Operating temperature | -30°C ~ +50°C |
| Storage temperature | -40°C ~ +70°C |
| Dust/water protection | IP54 (splash and dust resistant) |
| Tripod connection | 5/8″ x 11 thread |
| Weight (instrument only) | 1.8 kg |
| Dimensions | 130 x 145 x 210 mm |
| Power source | No battery required (optical-mechanical) |

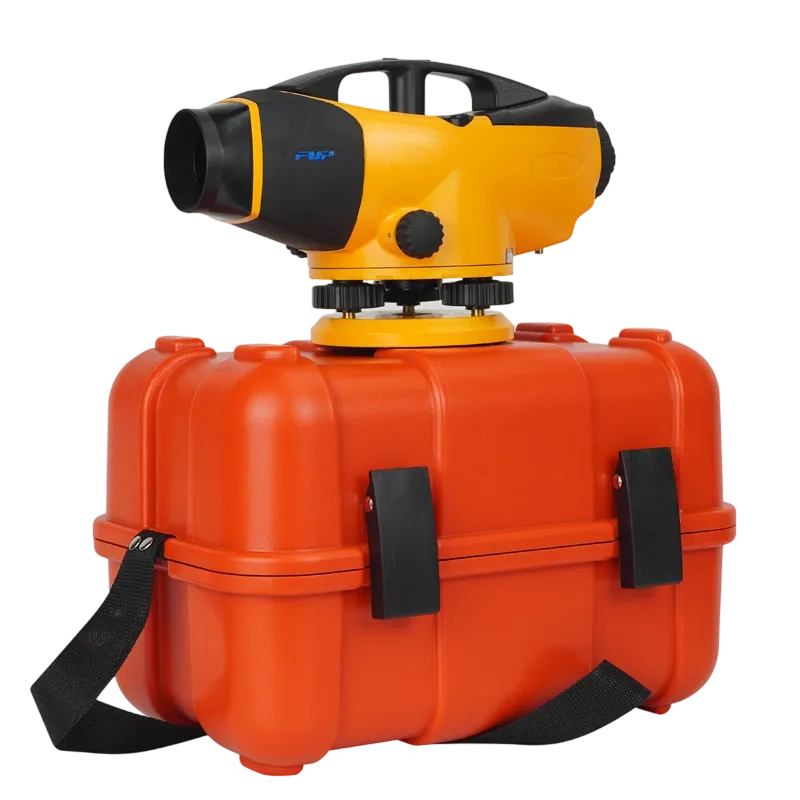

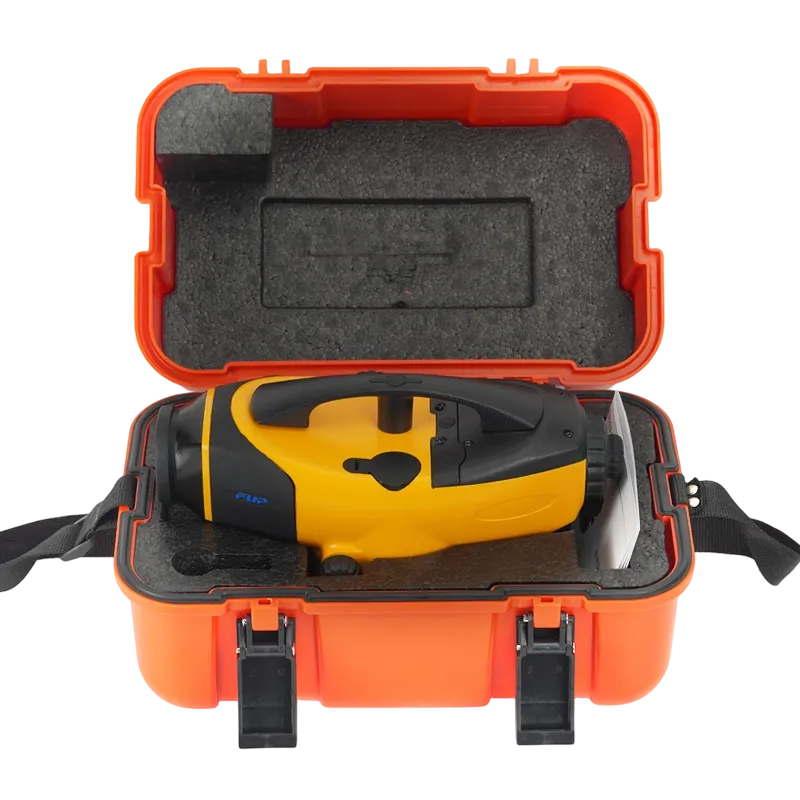

| Included accessories | Protective carrying case, lens cap, cleaning cloth, hex key, inspection certificate |
Applications
The E32 Auto-Level is well suited for military engineering units, defense infrastructure projects, and field surveying operations where reliable elevation control is critical.
Military Base Construction: Establish accurate elevation benchmarks for barracks, command centers, airfields, and training facilities.
Airfield & Runway Leveling: Support runway grading, pavement construction, and drainage verification to ensure safe aircraft operations.
Tactical Infrastructure Deployment: Assist in the layout and leveling of temporary military camps, communication stations, and logistics facilities.
Border & Perimeter Engineering: Provide accurate height control for fence installation, surveillance tower construction, and defensive structures.
Artillery Position & Terrain Survey: Support terrain assessment and site preparation for artillery emplacements and observation posts.
Frequently Asked Questions
An automatic level is used to determine height differences between points and establish accurate elevations for construction, surveying, infrastructure development, and engineering projects.
The automatic compensator automatically maintains a horizontal line of sight, reducing setup time and improving measurement accuracy compared with manual leveling instruments.
Yes. The E32 is specifically designed for construction surveying, site grading, foundation layout, road construction, and infrastructure projects requiring accurate elevation control.
Yes. Using its integrated stadia lines, the E32 can estimate horizontal distances while performing leveling operations, reducing the need for additional equipment.
Optical automatic levels provide reliable performance without batteries, are highly durable, easy to maintain, and remain a cost-effective solution for many surveying and construction applications.
