A rugged, multi-purpose search and rescue tool designed for extreme environments
The TFN VS02 Audio-Video Life Detector is a professional long-reach inspection and victim localization system designed for rescue, tactical security, and confined-space operations. Combining an 8-meter telescopic pole, Sony STARVIS ultra-low-light imaging, two-way audio communication, and real-time HD recording, the VS02 enables operators to safely inspect dangerous or inaccessible areas without direct human entry.
- 8-meter lightweight telescopic inspection pole
- Sony STARVIS ultra-low-light imaging sensor
- 160° wide-angle HD camera with adjustable LED lighting
- Two-way full-duplex audio communication system
- 7-inch detachable HD monitor with recording and 4× zoom
- Flexible bendable snake camera for corner and under-object inspection
8m Telescopic Pole for Safe Remote Inspection
The VS02 features a 6-section telescopic pole extending from approximately 1.6 meters to over 8 meters while maintaining a lightweight 2.4 kg structure. This extended reach allows operators to inspect deep wells, collapsed structures, tunnels, elevator shafts, and vehicle undercarriages from a safe distance.
The progressive pole diameter design improves rigidity and stability during full extension, reducing vibration and improving operational control during long-range inspection tasks.
Sony STARVIS Sensor for Extreme Low-Light Visibility
The camera system integrates a 1/2.7″ Sony STARVIS 5MP CMOS sensor capable of operating in extremely low-light environments down to 0.005 lux. Combined with a 160° wide-angle viewing angle, the VS02 provides clear and detailed imaging in tunnels, underground spaces, smoke-filled environments, and nighttime operations.
Nine integrated LED lights support 8 levels of adjustable brightness, enabling operators to optimize illumination for reflective surfaces, confined spaces, or completely dark inspection environments.
Two-Way Audio Communication with 300㎡ Pickup Range
The VS02 supports real-time bidirectional audio communication through an integrated microphone and 1W speaker system located near the camera head. The high-sensitivity audio pickup system can detect voices, tapping, or movement sounds within an approximate 300㎡ area.
This capability enables rescuers to communicate with trapped individuals, confirm human presence inside enclosed spaces, or issue commands during tactical operations.

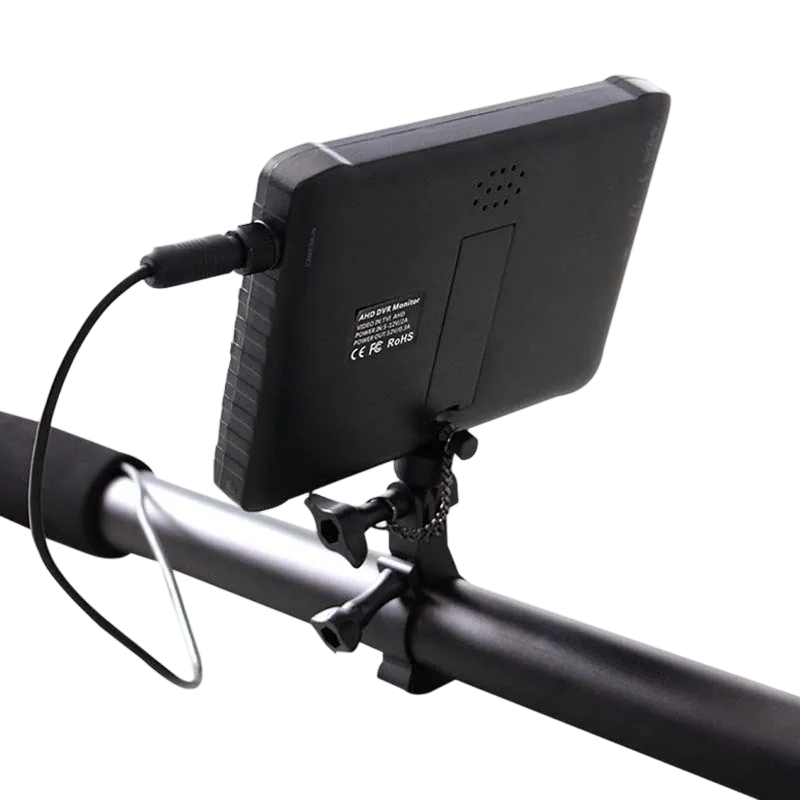

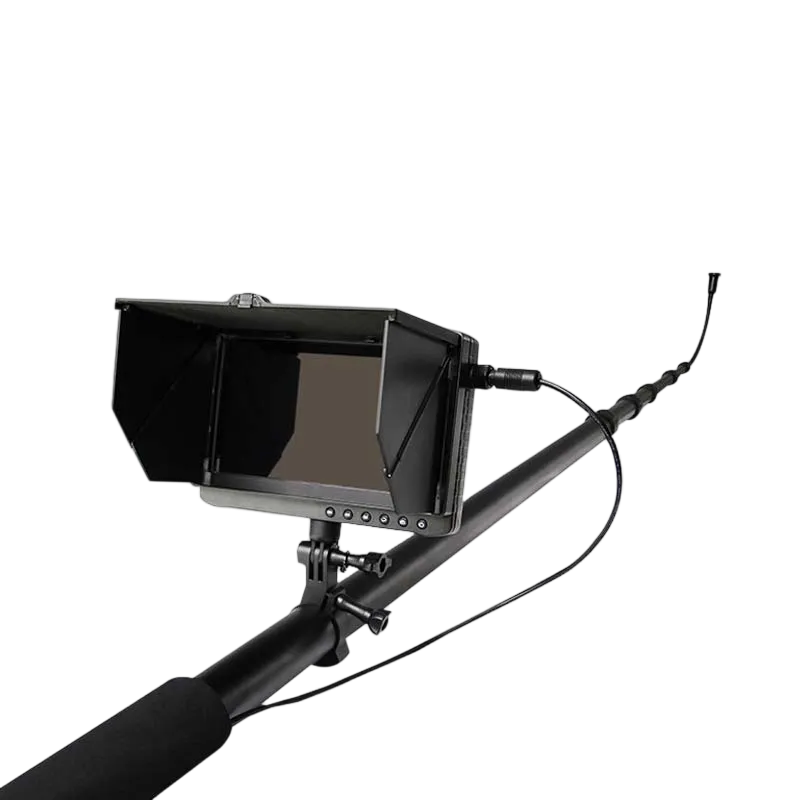

Portable HD Monitor with Recording & Digital Zoom
The detachable 7-inch monitor features high-brightness display output suitable for outdoor operation. It supports real-time 1080P video recording, 5MP image capture, playback, and 4× digital zoom for detailed inspection analysis.
Recorded files are stored on microSD cards up to 128GB, allowing operators to preserve inspection evidence, review footage on-site, and support operational documentation or training requirements.
Flexible Bendable Snake Camera Section
The front section of the VS02 includes a manually bendable snake tube that can be shaped to inspect around corners, beneath obstacles, or inside narrow cavities without repositioning the entire pole.
This design improves inspection flexibility inside vehicle chassis areas, wall gaps, pipelines, machinery interiors, and collapsed structures where direct line-of-sight is limited.
Rugged Portable Design for Rapid Deployment
The VS02 is designed for fast deployment in emergency and tactical environments. Its portable structure, rechargeable battery system, and integrated monitor allow single-operator use without external power equipment.
The system is suitable for prolonged outdoor operations including disaster response, field security inspection, and industrial confined-space inspection tasks.
| Camera Head | |
| Image Sensor | 1/2.7″ 5 Megapixel Progressive Scan CMOS (Sony STARVIS) |
| Minimum Illumination | 0.005 lux |
| Lens Field of View | 160° |
| Speaker Power | 1W |
| Pickup Range | 300㎡ |
| DVR Monitor | |
| Video Recording Resolution | 1920×1080 (1080P) |
| Photo Resolution | 5 Megapixels |
| Battery Capacity | 7500 mAh (rechargeable lithium, built‑in) |
| Screen Resolution | 800×480 pixels |
| Screen Brightness | 500 cd/㎡ |
| Storage Card | microSD, 2–128GB (optional) |
| Power Input | DC12V |
| 8 m Telescopic Pole | |
| Retracted Length | <1.6 meters |
| Extended Length | >8 meters |
| Weight | 2.4 kg |
| Section Diameters (thick to thin) | 35mm > 30.4mm > 25.5mm > 21.3mm > 16.4mm > 11mm |
| Others | |
| Snake Tube Length | 0.3m (manual bending) |
| LED Lights | 9 pcs, 8‑level brightness control |
| Digital Zoom | 4x |
Applications
Frequently Asked Questions
The VS02 is designed for hazardous and confined-space inspection environments including disaster ruins, tunnels, mines, wells, underground facilities, pipelines, and vehicle undercarriages.
The telescopic pole extends to more than 8 meters, allowing long-range inspection while keeping operators at a safe distance.
Yes. The Sony STARVIS sensor combined with 9 adjustable LED lights enables clear imaging in extremely low-light or zero-light environments.
Yes. The system supports two-way full-duplex audio communication and high-sensitivity sound pickup for victim localization and tactical communication.
Yes. The VS02 is suitable for tactical inspection, counter-terrorism operations, vehicle screening, underground reconnaissance, and hazardous-area remote inspection tasks.
