A rugged, multi-purpose search and rescue tool designed for extreme environments

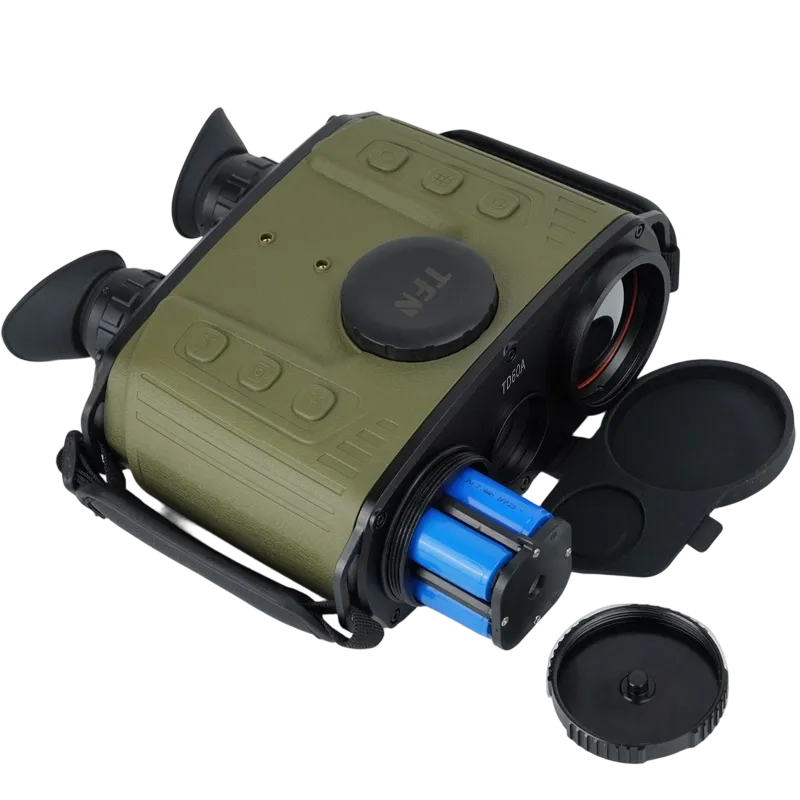

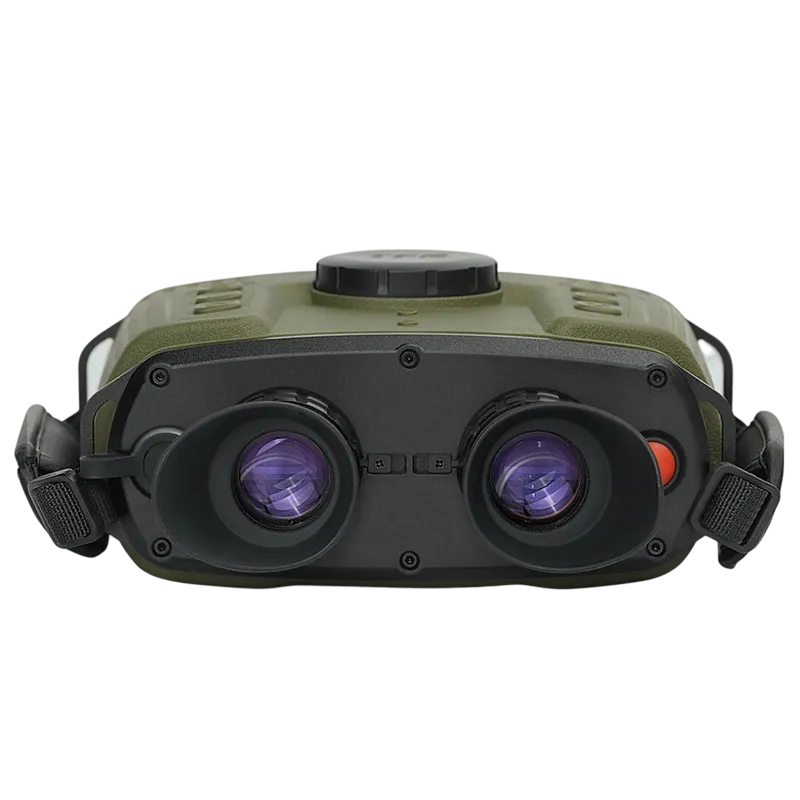

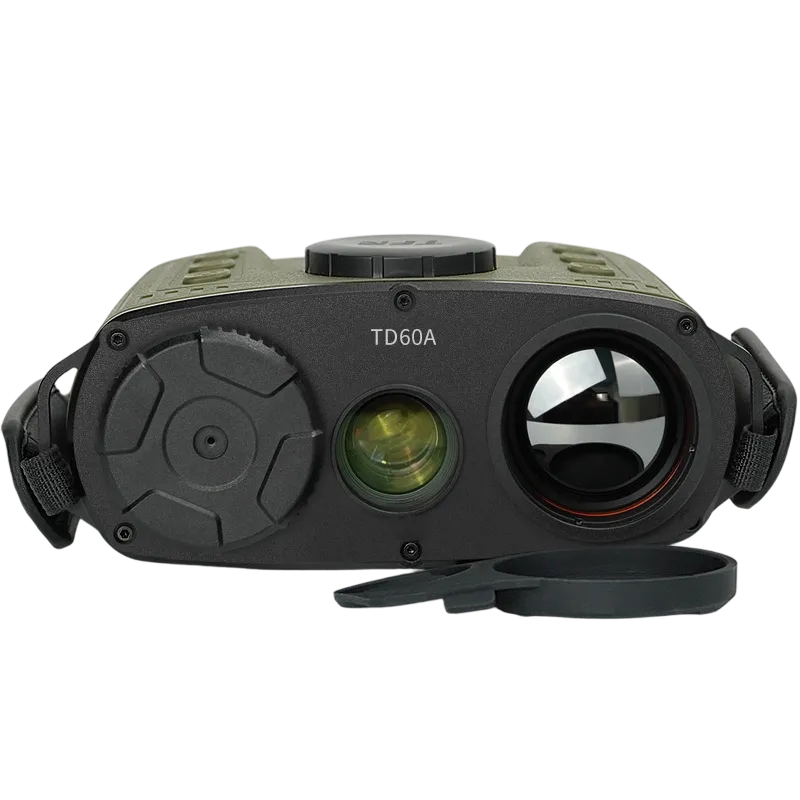

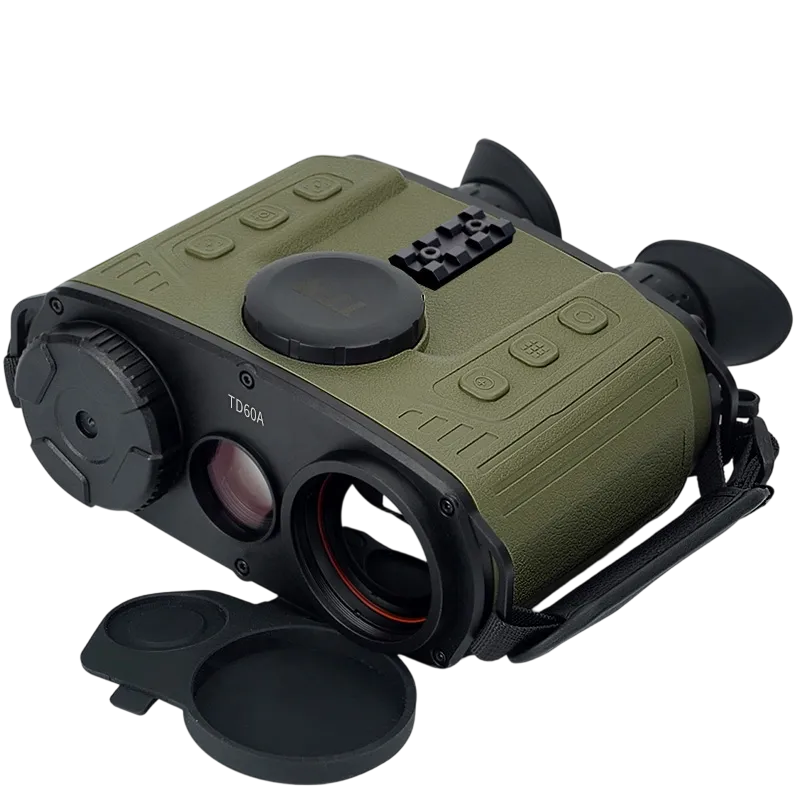

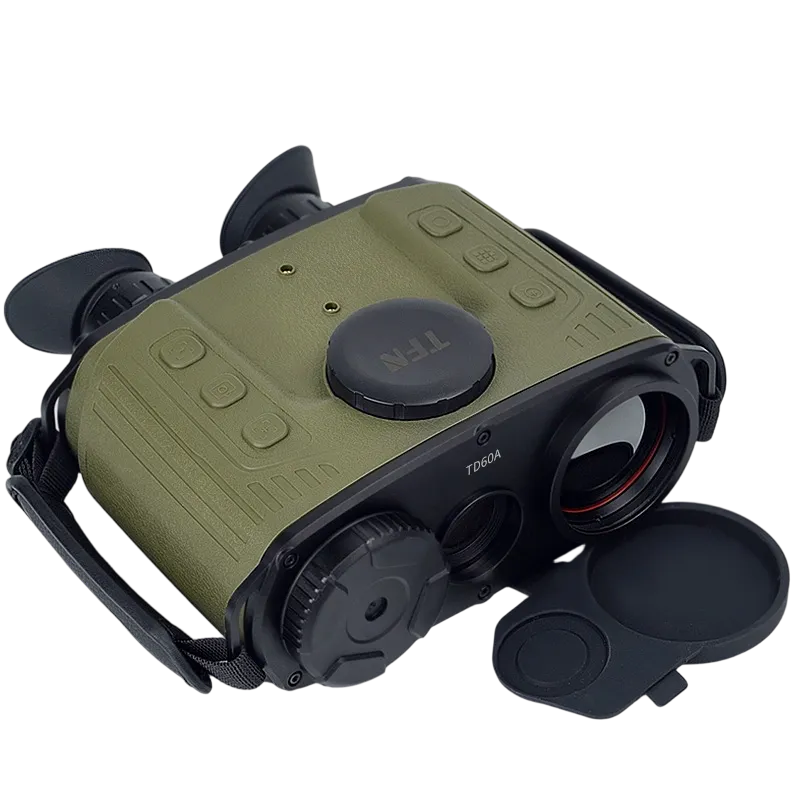

The TFN TD60A / TD64A is a professional-grade handheld multispectral fusion thermal binocular engineered for long-range surveillance, reconnaissance, and target identification in complex operational environments. Combining a high-sensitivity uncooled VOx thermal detector with a low-light CMOS sensor, the system delivers clear thermal imaging and enhanced visual detail in total darkness, fog, smoke, camouflage, and other low-visibility conditions.
- Ultra-long-range thermal target detection up to 12.5 km
- Advanced multispectral fusion imaging technology
- High-sensitivity uncooled VOx infrared detector
- Thermal + low-light dual-spectrum observation
- Multiple observation and display modes
- Rugged all-weather handheld design
- Enhanced target recognition in darkness, fog, and camouflage
Ultra-Long-Range Detection Performance
The TD60A / TD64A is optimized for strategic long-range observation and surveillance missions. Equipped with a high-performance thermal imaging core and precision germanium optics, the system delivers exceptional standoff detection capability for both personnel and vehicles.
Detection Capability
| Model | Human Detection | Vehicle Detection |
|---|---|---|
| TD60A | 3,333 m | 8,823 m |
| TD64A | 4,722 m | 12,500 m |
This long-range thermal detection capability allows operators to identify potential threats, monitor border activity, and observe distant targets well before visual contact becomes possible.
Advanced Dual-Spectrum Fusion Imaging
Unlike conventional night vision devices or standalone thermal monoculars, the TD series combines thermal imaging with low-light visible imaging to provide both heat signature awareness and environmental detail.
Fusion mode enhances:
- Target recognition accuracy
- Camouflaged target detection
- Situational awareness in complex terrain
- Identification of objects, structures, and movement
The multispectral fusion technology enables operators to observe thermal targets while retaining important scene context that pure thermal imaging may not reveal.
High-Sensitivity VOx Thermal Core
At the heart of the TD series is a professional uncooled Vanadium Oxide (VOx) infrared detector designed for stable, high-resolution thermal imaging.
Benefits include:
- Clear thermal image detail
- Enhanced thermal contrast
- Low-noise image processing
- Improved detection of subtle temperature differences
- Reliable performance in low-visibility environments
The system is suitable for long-range thermal reconnaissance, tactical surveillance, and industrial thermal inspection tasks.
Multiple Observation Modes
The TD60A / TD64A supports multiple operational modes for different mission requirements:
- Infrared Thermal Mode
- Low-Light Observation Mode
- Dual-Spectrum Fusion Mode
- Picture-in-Picture (PIP) Mode
Operators can quickly adapt the display according to terrain, weather, lighting conditions, and mission objectives.
Customizable Thermal Color Palettes
The system includes multiple thermal display palettes for optimized viewing under varying environmental conditions:
- White Hot
- Black Hot
- Iron Red
- Rainbow
- Cool
These thermal palettes improve target contrast and observation efficiency during surveillance, tracking, and search operations.
Rugged Portable Design for Field Operations
Built for demanding operational environments, the TD series features a compact ergonomic binocular structure suitable for prolonged handheld use.
Designed for:
- Outdoor tactical deployment
- Border patrol operations
- Maritime environments
- Harsh weather conditions
- Mobile reconnaissance missions
The durable housing supports reliable operation across challenging environmental conditions while maintaining portability and user comfort.
| Parameter Category | Specification Detail |
| Detector Type | Uncooled Vanadium Oxide (VOx) Focal Plane Array |
| Core Modes | Infrared, Low-Light Visible, Dual-Spectrum Fusion, Picture-in-Picture (PIP) |
| Image Palettes | Rainbow, Iron Red, Cool, Black Hot, White Hot |
| Detection Range (Human 1.7 m) | TD60A: ≤ 3,333 meters TD64A: ≤ 4,722 meters |
| Detection Range (Vehicle 4.5 m) | TD60A: ≤ 8,823 meters TD64A: ≤ 12,500 meters |
| Environmental Adaptability | High resistance to temperature variation and humidity; Designed for rugged field use |
| Ergonomics | Compact, lightweight binocular design for handheld portability |
| Target Application | Long-range surveillance, law enforcement patrol, border security, outdoor hunting |
Applications
Frequently Asked Questions
The primary difference is detection capability. The TD64A provides longer maximum detection ranges than the TD60A, particularly for vehicle-sized targets, reaching up to 12.5 km.
The TD series is suitable for:
Industrial inspection and monitoring
Military and defense
Border security
Law enforcement
Maritime surveillance
Wildlife management
Multispectral fusion combines thermal target detection with visible-scene detail, improving situational awareness and target identification compared with standalone thermal imaging systems.
Yes. The device integrates a thermal imaging sensor and a low-light CMOS camera. Users can switch between thermal mode, low-light mode, fusion mode, and picture-in-picture mode.
Yes. The TD series is designed as a rugged handheld thermal binocular for demanding outdoor environments and extended field operations.
