thermal binocular for long-range day and night surveillance, reconnaissance, and thermal target detection in demanding environments.

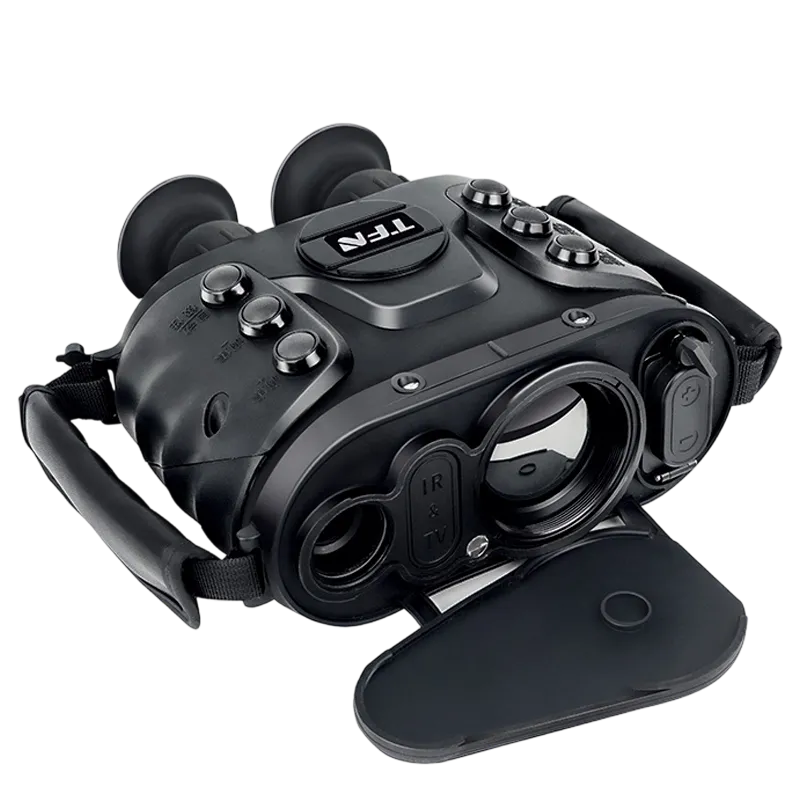

The TFN TD85 is a professional handheld multispectral fusion thermal binocular designed for long-range day and night surveillance, reconnaissance, and target observation in complex operational environments. Combining an uncooled thermal imaging sensor with a visible-light observation channel, the TD85 delivers reliable thermal target detection and enhanced situational awareness in darkness, fog, smoke, haze, and adverse weather conditions.
- Thermal imaging + visible-light fusion observation
- Integrated GPS positioning and geotagging
- Fast automatic focus system
- High-definition OLED binocular display
- Long-range thermal target detection
- Multiple thermal color palettes
- Rugged IP67 waterproof and dustproof design
Dual-Spectrum Thermal Fusion Imaging
The TD85 combines thermal imaging and visible-light observation into a single multispectral system, allowing operators to detect heat signatures while maintaining environmental detail and scene awareness.
Compared with conventional night vision devices, thermal fusion observation improves:
- Detection in complete darkness
- Observation through fog, smoke, and haze
- Camouflaged target recognition
- Situational awareness in complex terrain
The system supports reliable day and night operation without requiring external infrared illumination.
Advanced Thermal Image Processing
The TD85 utilizes onboard digital image enhancement and thermal signal processing algorithms to improve image clarity and contrast during long-range observation.
Core functions include:
- Thermal image filtering
- Dynamic contrast enhancement
- Noise reduction processing
- Non-uniformity correction (NUC)
These technologies help maintain stable thermal image quality in challenging outdoor environments and improve visibility of low-contrast heat signatures.
Automatic Focus & Multi-Level Electronic Zoom
The integrated automatic focus system enables rapid target acquisition during surveillance and reconnaissance operations.
Combined with electronic zoom capability, operators can:
- Switch quickly between wide-area observation and detailed target inspection
- Improve long-range target recognition
- Reduce manual focus adjustment time during tactical operations
The zoom and image processing system is optimized to maintain image clarity during magnified observation.
Integrated GPS Positioning & Geospatial Data
The TD85 includes a built-in GPS positioning module for coordinate recording and geospatial referencing during field operations.
GPS functionality supports:
- Target coordinate acquisition
- Geo-referenced image and video recording
- Patrol route documentation
- Reconnaissance reporting
This feature improves coordination efficiency during military, security, and search operations requiring accurate location information.

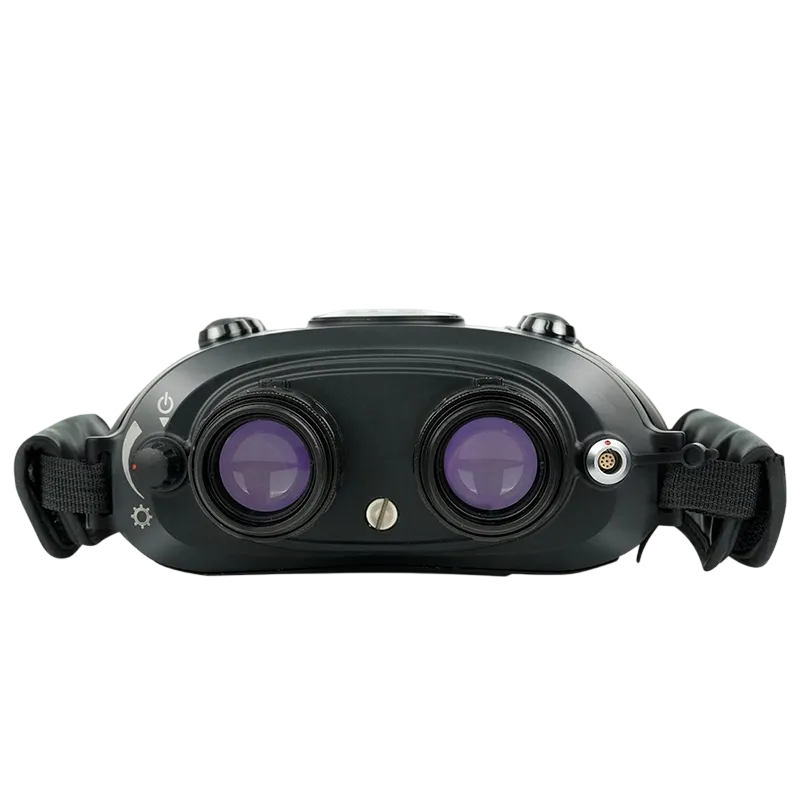

High-Definition OLED Binocular Display
The binocular viewing structure and OLED display are designed for prolonged observation tasks and operator comfort.
Advantages include:
- Reduced eye fatigue during extended monitoring
- High thermal image contrast
- Clear target visualization in low-light environments
- Improved immersion and observation stability
The OLED display technology enhances visibility of thermal targets while maintaining sharp image detail.
Rugged IP67 Field-Ready Construction
Built for demanding operational environments, the TD85 features an IP67-rated waterproof and dustproof housing suitable for outdoor tactical deployment.
The ruggedized structure supports reliable operation in:
- Rain and humid environments
- Dust and sand exposure
- Coastal and maritime conditions
- Low-temperature outdoor environments
Its portable handheld design makes it suitable for mobile surveillance teams, patrol units, and remote observation missions.
Flexible Power Management
The TD85 is designed for extended field deployment with a rechargeable battery system and external power support capability.
Features include:
- Long-duration field operation
- Replaceable battery support
- External USB power compatibility
- Intelligent power-saving functions
This improves operational endurance during long surveillance tasks and remote deployments.
| Parameter Category | Specification Detail |
| Product Name | TFN TD85 |
| Detector Type | Uncooled focal plane micro-thermal |
| Wavelength Range | 8 – 14 μm |
| Resolution | 384×288 pixels |
| Frame Rate | 50Hz |
| Field of View | 10.8°×8.3° / 5.4°×4.1° (extended) |
| NETD | ≤60mk @30℃ |
| Focus Method | Auto or motorized electric focus |
| Display | High-definition OLED binocular, 800×600 |
| Image Polarity | White hot / Black hot |
| CCD Imager | 1/3″ CCD, 795(H)×596(V) pixels |
| CCD FOV | 10.8°×8.3° |
| Storage Media | Built-in memory |
| Recording Mode | Photo / Video |
| File Format | BMP / AVI |
| Storage Capacity | >10,000 images or 8 hours of video |
| Functions | Brightness/gain (auto/manual), polarity switch, electronic zoom (2x,3x,4x), image enhancement, image filter |
| Battery Type | Rechargeable lithium battery |
| Battery Life | >5 hours continuous |
| Charger | Dedicated charger |
| Operating Temp. | -30℃ ~ 50℃ |
| Storage Temp. | -40℃ ~ 60℃ |
| Humidity | ≤90% (non-condensing) |
| Protection Class | IP67 |
| Weight | ≤1.4 kg |
| Housing Color | Black (standard) |
| Dimensions | 210(L) × 195(W) × 85(H) mm |
| External Interfaces | External power, external video (PAL), USB, 1/4″-20 mounting thread |
| Detection Range | Human (1.7×0.5 m): 1650m; Vehicle (2.3×2.3 m): 2300 m |
| Recognition Range | Human: 550 m; Vehicle: 760 m |
Applications
Frequently Asked Questions
Yes. The TD85 integrates a thermal imaging sensor and a visible-light observation channel for dual-spectrum fusion viewing.
The TD85 is a multispectral fusion thermal binocular designed for long-range thermal observation, reconnaissance, surveillance, and target detection in day and night environments.
Yes. The thermal imaging channel allows observation in total darkness, fog, smoke, haze, and other environments where traditional optical systems cannot operate effectively.
Yes. The thermal imaging system detects heat signatures independently of visible light, allowing observation in total darkness and low-visibility environments.
Integrated GPS allows operators to record target coordinates, geotag captured images and video, and improve situational coordination during tactical or rescue operations.
