Deliver reliable, real-time threat detection and situational awareness in complete darkness and adverse weather environments.

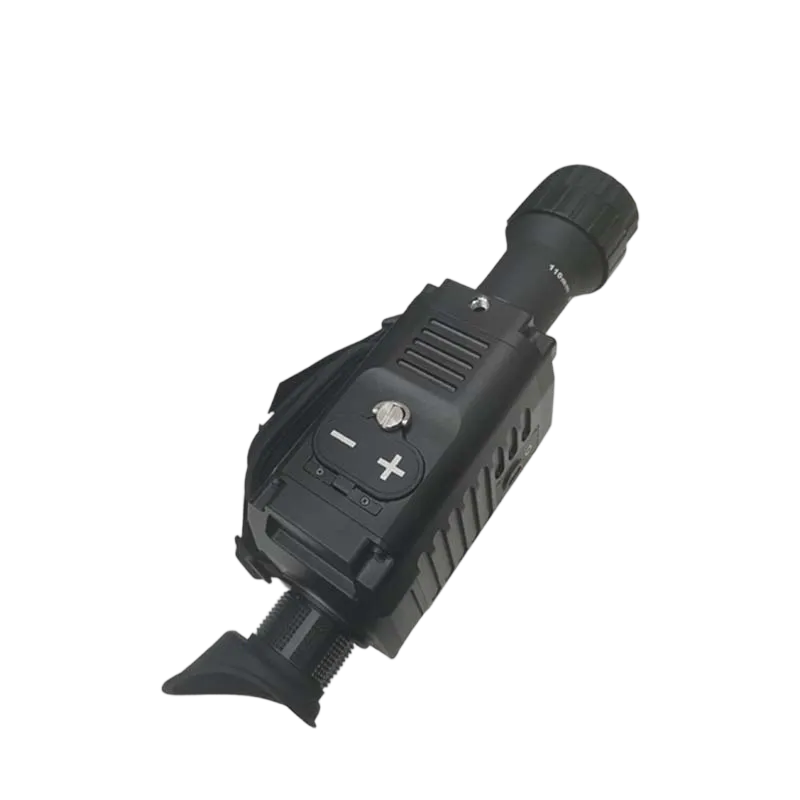

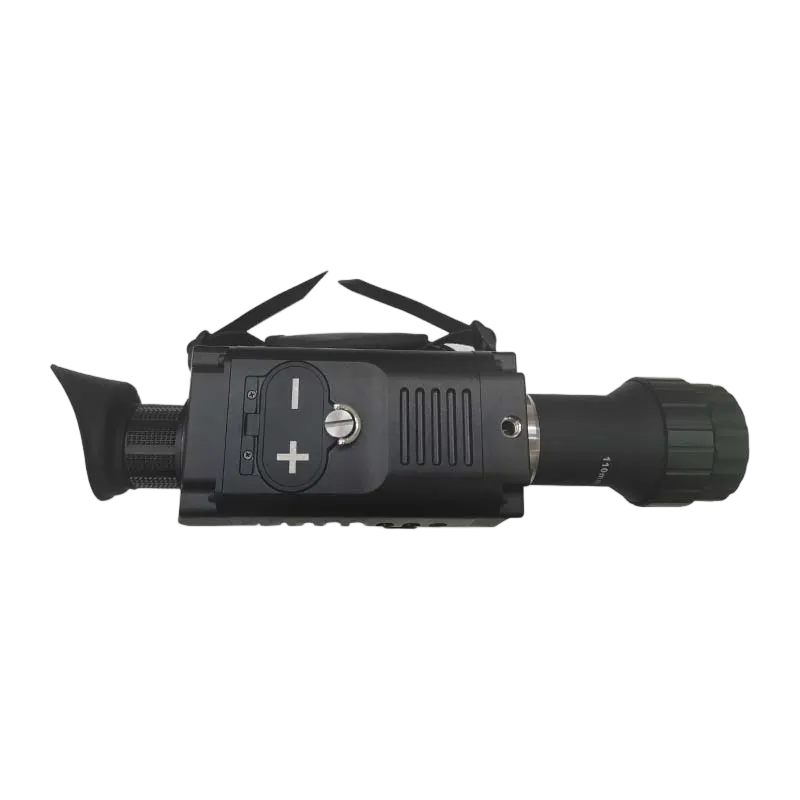

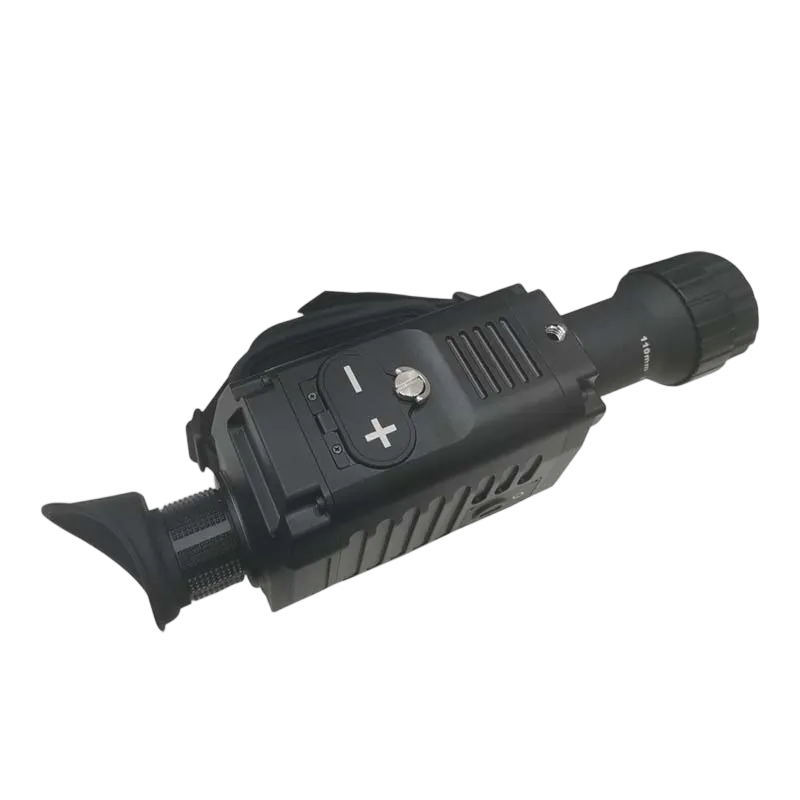

The TFN TF5A is a rugged, handheld multi-sensor monocular engineered for high-stakes military reconnaissance, covert operations, and long-range target acquisition. Integrating a high-sensitivity uncooled thermal imager, an eye-safe precision laser rangefinder, and cutting-edge anti-reconnaissance technologies, the TF5A allows operators to detect hidden threats over 1.5 kilometers away in absolute darkness. Featuring a full-HD 1080P OLED display, onboard intelligence recording, and an IP66 weather-proof rating, this tactical powerhouse delivers critical distance data and visual intelligence while keeping the operator completely undetectable to hostile sensors.
- Integrated Multi-Sensor Suite: Combines long-range thermal imaging, laser ranging, and counter-reconnaissance in a single device.
- 1.5+ Kilometer Thermal Detection Range: Operates passively across pitch-black darkness, dense fog, and smoke screens.
- One-Button Precision Laser Rangefinder: Delivers instant, accurate distance measurements within one second.
- Full-HD 1080P OLED Display: High-contrast, crystal-clear imaging optimized to reduce eye strain during prolonged missions.
- Low-Probability-of-Intercept (LPI) Design: Passive thermal detection and narrow-pulse laser technology prevent enemy sensor detection.
- Onboard HD Photo & Video Recording: Captures high-fidelity visual evidence directly to internal storage for intelligence debriefing.
- IP66 Ruggedized Protection & USB-C Power: Dustproof, heavy rainproof, and supports continuous operation via external power banks.
Ultimate Situational Awareness & Passive Target Acquisition
The TFN TF5A redefines tactical observation by combining multiple essential field tools into a single, compact handheld chassis. At its core is an advanced uncooled thermal imaging sensor capable of isolating human, vehicular, and equipment heat signatures from over 1.5 kilometers away. Operating completely passively without the need for ambient light or position-exposing infrared illuminators, the TF5A cuts through the most punishing environmental obscurants—including zero-light environments, thick smoke, dust storms, and light foliage. Every thermal frame is rendered onto a premium Full-HD 1080P OLED display, giving operators the high-contrast clarity needed to distinguish fine target details, such as weapon profiles or subtle human movements, under any lighting conditions.
Precision Targeting and Stealth-Focused Architecture
Operational safety and rapid response are seamlessly engineered into the TF5A. With its integrated one-button laser rangefinder, operators can instantly acquire the exact distance to a target in less than a second, eliminating the need to swap between a separate thermal scope and an independent rangefinder.
Crucially, the TF5A is built around a Low-Probability-of-Intercept (LPI) and anti-reconnaissance architecture. The laser rangefinder utilizes ultra-short, low-power narrow pulses that are virtually invisible to enemy laser warning receivers (LWR) and optical detectors. This passive and covert design allows forward observers and tactical teams to calculate ballistic trajectories and designate targets deep within hostile territory without compromising their grid coordinates or triggering enemy alarms.
Mission Documentation and Elite Field Survivability
For comprehensive intelligence gathering, the TF5A features a built-in multimedia recording module. Operators can capture high-resolution photos and steady video footage of target behaviors or tactical layouts in real time. This onboard documentation removes the logistical burden of carrying extra camera gear, allowing for seamless post-mission analysis, ballistic calculations, and strategic debriefings back at base camp.
Constructed to survive the most punishing combat and environmental realities, the TF5A boasts an IP66 ingress protection rating, shielding its sensitive internal electronics from torrential downpours, sandstorms, and severe mechanical shocks. For multi-day field operations, the built-in USB-C port supports continuous pass-through charging via standard portable power banks, extending the system’s operational lifecycle past 24 hours to match the duration of any mission.
| Parameter | Details |
| Product Name | TF5A Handheld Laser Ranging Night Vision Device |
| Imaging Resolution | 1920 x 1080 pixels |
| Display | 0.39-inch OLED, 1920×1080 Full HD |
| Thermal Sensor | Uncooled VOx microbolometer (typical) |
| Spectral Range | 8–14 μm |
| Laser Ranging Range | Up to 2000 m (depending on target reflectivity) |
| Ranging Accuracy | ±1m |
| Magnification | Optical: 5x / Digital: up to 8x |
| Field of View | 7.2° × 5.4° (approx.) |
| Photo Recording | Yes (JPEG) |
| Video Recording | Yes (MP4) |
| Storage | Micro SD card (up to 128 GB, not included) |
| Display Output | SDI external display support |
| Power Supply | Built-in rechargeable battery + external power bank via USB-C |
| Battery Life | ≥6 hours continuous (without external power) |
| Operating Temperature | -20°C to +50°C |
| Protection Rating | IP66 (dust-tight, protected against heavy seas) |
| Dimensions | ≤ 180 × 80 × 60 mm (approx.) |
| Weight | ≤ 650 g (including battery) |
| Mounting | 1/4″-20 tripod thread |
Applications
Frequently Asked Questions
The TF5A utilizes an advanced Low-Probability-of-Intercept (LPI) design. Its laser rangefinder emits a class-1 eye-safe beam in ultra-short, narrow, low-power pulses. This makes it exceptionally difficult for hostile laser warning receivers (LWR) or electronic surveillance sensors to detect or trace the beam back to your location, ensuring maximum stealth during covert operations.
The full-HD 1080P OLED display provides significantly higher contrast, deeper black levels, and richer color rendering than traditional LCD screens. This extreme clarity is vital for night surveillance, as it vastly reduces operator eye strain during extended observation windows and allows for the clear identification of distant target details.
The integrated multimedia module focuses on high-fidelity visual evidence collection, capturing clear HD video and still photos of target behaviors, weapon shapes, and terrain layouts directly onto the device for post-mission intelligence analysis.
Beyond its internal power system, the TF5A features a ruggedized USB-C port that supports external power bank integration. Instead of carrying heavy proprietary batteries, operators can plug the monocular into any standard tactical power bank to run the unit continuously for over 24 hours, even in sub-zero or harsh weather conditions.
