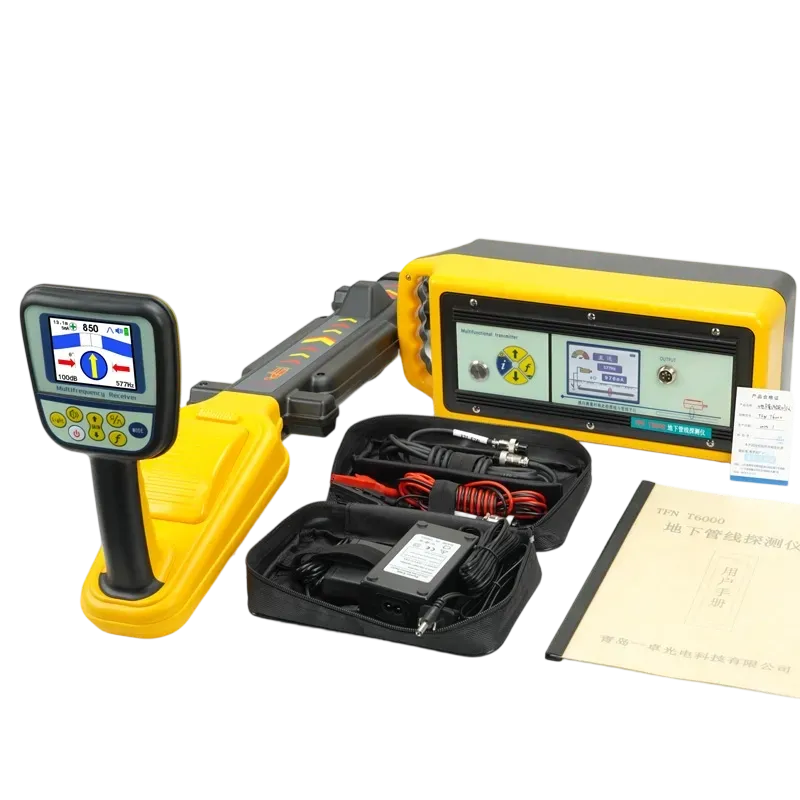

Ultra-Deep Pipe & Cable Detection System with Phase & Current Direction Analysis
The TFN T6000 Underground Utility Locator is a high-end professional detection system designed for precise locating, tracing, and mapping of buried pipelines and cables in complex environments. Featuring a powerful 12W transmitter, 31 selectable frequencies, and an advanced intelligent receiver with a 3.5-inch true-color LCD, it delivers exceptional depth performance and signal clarity.
- Ultra-Deep Detection up to 20 Meters
- 12W High-Power Transmitter
- 31 Selectable Operating Frequencies
- Current Direction & Phase Identification
- Real-Time Depth & Path Tracking
- 3.5-Inch True-Color LCD Display
- Multi-Mode Signal Application (Direct / Clamp / Induction)
- Blind Test Function for Unknown Utilities
- Live Cable Identification Support
- High Interference Resistance in Dense Urban Environments
Ultra-Deep Underground Detection Capability
The T6000 delivers industry-leading detection depth of up to 20 meters, enabling reliable location of deeply buried pipelines and cables that standard locators cannot reach. Its high-power 12W transmitter ensures strong signal penetration through complex soil conditions, reinforced concrete environments, and dense utility corridors.
This makes it ideal for large-scale infrastructure projects, industrial facilities, and deep utility mapping operations where accuracy and depth are critical.
31 Frequencies for Maximum Detection Flexibility
With 31 selectable frequencies ranging from 98 Hz to 200 kHz, the T6000 provides exceptional adaptability for different pipe materials, cable types, and environmental conditions.
Operators can fine-tune signal output to:
- Reduce electromagnetic interference
- Improve signal clarity in congested areas
- Optimize detection accuracy for metallic utilities
- Adapt to varying soil conductivity conditions
Advanced Current Direction & Phase Recognition
A key differentiator of the T6000 is its current direction and phase analysis system, which displays signal flow and phase angles to distinguish target utilities from adjacent or parallel lines.
This capability significantly reduces:
- Cross-talk interference
- Misidentification of cables
- False signal tracing results
It ensures accurate path identification even in highly complex underground networks.

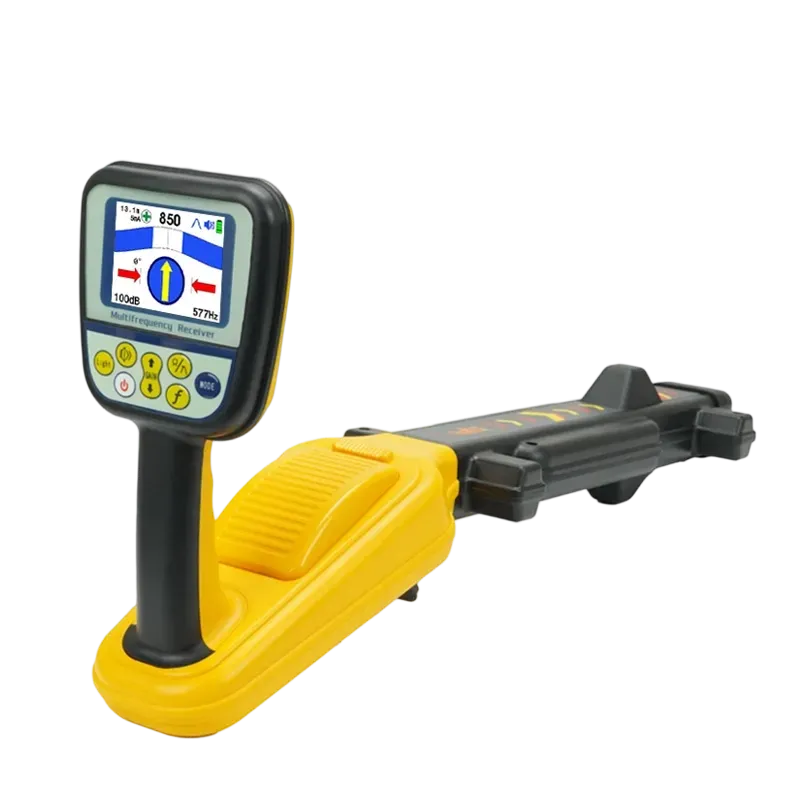

Intelligent 3.5-Inch True-Color Display
The receiver features a high-resolution 3.5-inch color LCD screen that provides real-time visual guidance, including:
- Signal strength
- Depth measurement
- Current direction
- Compass orientation
- Gain level
- Left/right tracking arrows
Combined with audio feedback and intuitive UI design, the system enables fast interpretation and efficient field decision-making even under challenging lighting conditions.
Multi-Mode Operation for Complex Field Conditions
The T6000 supports multiple signal application methods:
- Direct Connection Mode
- Coupling Clamp Mode
- Induction Mode
In addition, it includes a blind test function for detecting unknown utilities without direct access, making it highly effective for pre-construction surveys and legacy infrastructure mapping.
High-Accuracy Depth & Path Tracking
The system provides real-time depth measurement and precise path guidance with accuracy up to:
- ±5% within 3 meters depth
This ensures reliable underground mapping, reduces excavation risk, and supports compliance with safety regulations in construction and utility maintenance operations.
Blind Test Mode for Unknown Utility Detection
The integrated blind test function allows operators to locate buried metallic pipes and cables without prior knowledge of their position or direct connection.
This is especially useful for:
- Unmapped utility networks
- Historical infrastructure surveys
- Pre-excavation risk assessment
It significantly reduces the chance of accidental utility strikes during digging operations.
Cable Identification & Fault Location Support
When paired with a coupling clamp, the T6000 supports live cable identification and fault zone detection. The system accurately isolates target cables within energized networks, making it highly effective for maintenance and emergency repair operations.

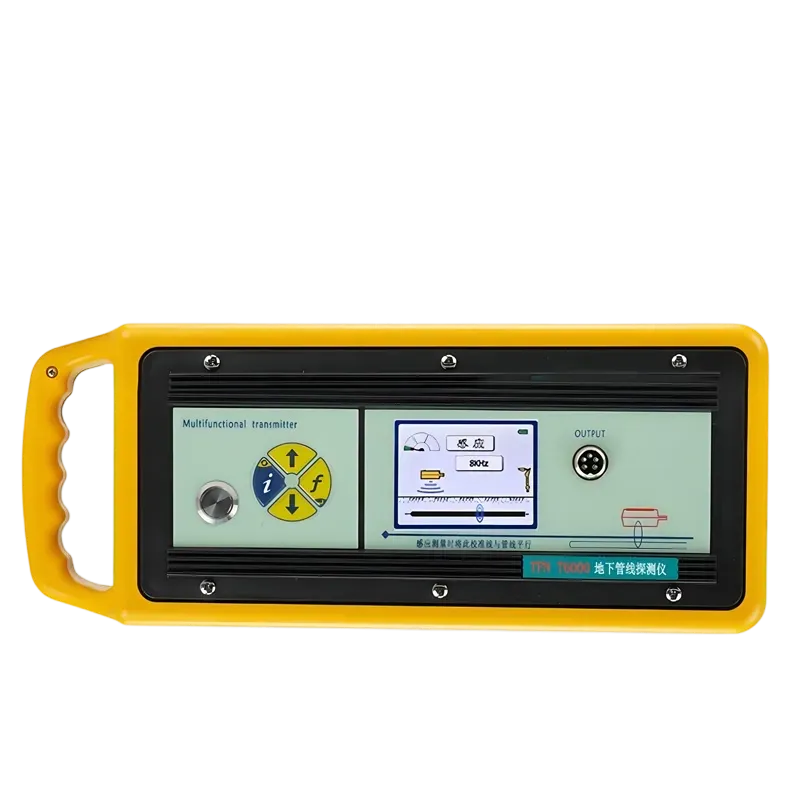

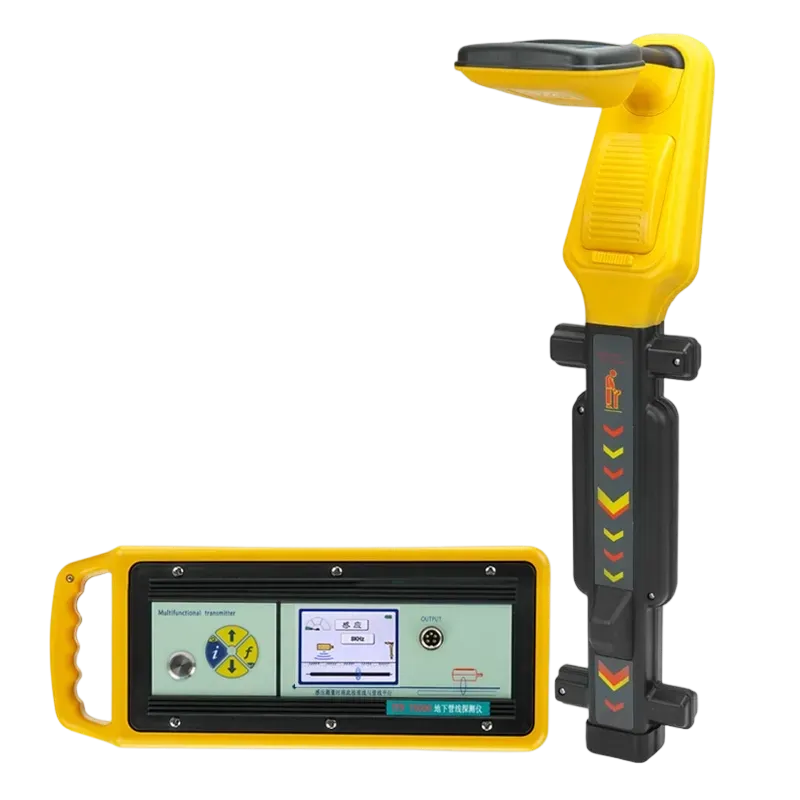

Transmitter:
- Output Power: ≥12W (max)
- Output Current: ≥1A (max)
- Operating Frequencies: 31 selectable frequencies including 98Hz, 577Hz, 8kHz, 33kHz, 82kHz, 133kHz, 200kHz, etc.
- Signal Output Modes: Direct Connection, Coupling, Induction
- Display: LCD with frequency, power, mode, current, impedance, battery level
- Power Supply: Rechargeable lithium-ion battery
- Additional Functions: Ohmmeter, external voltage detection, multi-frequency simultaneous output (up to 3 frequencies)
- Operating Temperature: -10°C to +50°C (based on maintenance guidelines)
Receiver:
- Detection Depth: Up to 20 meters
- Depth Accuracy: ±5% (0–3m), ±10% (up to 8m)
- Receiving Frequencies: 9 default including 50Hz, 60Hz, 577Hz, 8kHz, 33kHz, 82kHz, 133kHz, SS Low, SS High
- Locating Modes: Narrow Peak, Wide Peak, Valley, Wide Peak Arrow, Peak + Valley
- Display: 3.5-inch 24-bit true-color LCD, adjustable backlight
- Guidance Features: Compass, left/right arrows, current direction, phase indication
- Gain Control: Auto/Manual, 0–140 dB
- Audio: Adjustable buzzer with signal-proportional tone
- Power Supply: Rechargeable lithium-ion battery
- Compliance: FCC Part 15, ETSI EN, CJJ 61-2003
Applications
Frequently Asked Questions
An underground utility locator is used to detect, trace, and identify buried pipelines and cables before excavation. It helps prevent damage to underground infrastructure and improves construction safety.
No. T60OO underground utility locator can only detect metallic pipes.
The T6000 can detect underground pipelines and cables up to 20 meters deep, depending on soil conditions, utility type, and signal application method.
The T6000 features 31 frequencies, 12W transmitter power, and current direction/phase analysis, allowing it to deliver higher accuracy and better interference resistance than standard locators.
Yes. Its advanced phase and current direction analysis significantly reduces interference in dense underground utility networks, making it highly effective in urban environments.
